In 1890 the Policy Board called for a variety of large caliber weapons, all the way up to 16" (40.3 cm). This large a caliber was beyond US manufacturing capabilities of the time, as the largest size possible was 13" (33 cm), so the Navy settled for this smaller caliber.

This gun was intended for short-range action against heavily armored targets and was fitted to the first true US battleship, the USS Indiana B-1. This was the only gun of this caliber ever developed for the US Navy.

Background note: The black powder propellants used for most of the 19th century burned very quickly, giving the projectiles a short, sharp kick. With these kinds of propellants, the longer the barrel, the slower the muzzle velocity. This was due to friction occurring after the propellant had completed combustion. This is why heavy guns for most of the 19th century had such short barrels, some only 20 calibers long. The late 1800s saw the development of brown or cocoa powder. This burned more slowly, which allowed a longer barrel length and thus increased the muzzle velocity. However, this propellant wasted much of its energy producing thick smoke.

Mark 1 Mod 0 consisted of 'A' tube, jacket and nine hoops. Mark 1 Mod 1 had a nickel steel liner and eight hoops. Mark 2 consisted of 'A' tube, jacket, seven hoops, and two locking rings. These guns used the Farcot side-swing breech mechanism and later converted to the Fletcher breech mechanism.

One Mark 2 gun was converted to a 16"/28.8 (40.6 cm) Experimental gun. See the photograph below. Another Mark 2 gun, Serial Number 33, was bored out to 14" (35.6 cm) sometime before 1923 and used for experimental purposes. A photograph of this gun may be found on the 9"/98 (22.9 cm) datapage.

Gun Characteristics

Designation 13"/35 (33 cm) Mark 1
Ship Class Used On Indiana (B-1), Kearsarge (B-5) and Illinois (B-7) classes
Date Of Design N/A
Date In Service 1895
Gun Weight 137,900 lbs. (62,550 kg) (including breech)
136,000 lbs. (61,690 kg) (without breech)
Gun Length oa N/A
Bore Length 455 in (11.557 m)
Rifling Length N/A
Grooves N/A
Lands N/A
Twist N/A
Chamber Volume N/A
Rate Of Fire As Commissioned with Black Powder: about 0.2 rounds per minute
ca. 1915 with SP: about 1.0 rounds per minute


Type Bag
Projectile Types and Weights AP Mark 3 - 1,130 lbs. (512.6 kg)
AP Mark 5 - 1,130 lbs. (512.6 kg)
AP Mark 9 - 1,130 lbs. (512.6 kg)
Common - 1,130 lbs. (512.6 kg)
Bursting Charge 1 AP Mark 3 - 22.11 lbs. (10.0 kg) Explosive D
AP Mark 5 - 36.12 lbs. (16.4 kg) Explosive D
AP Mark 9 - 27.75 lbs. (12,6 kg) Explosive D
Common - 40.0 lbs. Black Powder (18.1 kg)
Projectile Length AP Mark 3 - 43.58 in (110.7 cm) [3crh]
AP Mark 5 - 42.22 in (107.2 cm) [3crh]
AP Mark 9 - 46.05 in (117.0 cm) [7crh]
Common - N/A
Propellant Charge About 500 lbs. (227 kg) Black Powder
180.0 lbs. (81.6 kg) SP 2
Muzzle Velocity 2,000 fps (610 mps)
Working Pressure 14.0 tons/in2 (2,205 kg/cm2)
Approximate Barrel Life N/A
Magazine capacity per gun 60 rounds
  • ^Earlier AP shells had Black Powder bursters of between 22.5 lbs. (10.2 kg) and 30.0 lbs. (14.0 kg).
  • ^SP propellant was in three equal bags.


Ranges of AP shells with MV = 2,000 fps (610 mps) 1a
Elevation Range Angle of Fall Time of Flight Striking Velocity Maximum Ordinate
9.50 degrees 10,000 yards (9,140 m) 12.47 degrees 18.89 seconds 1,327 fps (404 mps) 1,438 feet (438 m)
10.82 degrees 11,000 yards (10,060 m) 14.13 degrees 21.53 seconds 1,281 fps (390 mps) 1,438 feet (571 m)
11.50 degrees 11,500 yards (10,520 m) 26 degrees 22.53 seconds 1,267 fps (386 mps) 2,051 feet (625 m)
15.00 degrees about 12,000 yards (11,000 m) N/A N/A N/A N/A
  • ^Values from "Range and Ballistic Tables 1935."
  • During the Battle of Santiago on 3 July 1898, the battleship Oregon (B-3) engaged in a running shoot with the Spanish cruiser Cristobal Colon. Oregon's last shots traveled 9,500 yards (8,700 m) and landed just ahead of the Spanish ship, convincing her to surrender. However, these rounds also "somewhat damaged" Oregon's guns due to the "high angle" (probably over +10 degrees) at which they were fired.

Armor Penetration with AP

Range Side Armor Deck Armor
6,000 yards (5,490 m) 12.13" (308 mm) ---
9,000 yards (8,230 m) 10.09" (256 mm) ---
12,000 yards (10,920 m) 9.11" (231 mm) ---
  • This data is from "Ordnance Data Sheets" of 1905 as published in "US Naval Weapons."
Range Side Armor Deck Armor
6,000 yards (5,490 m) 10.3" (262 mm) ---
9,000 yards (8,230 m) 8.1" (206 mm) ---
12,000 yards (10,920 m) 6.1" (155 mm) ---
  • This data is from "Elements of US Naval Guns" of 1918 and is corrected for angle of fall. It may also refer to harder armor than used for the 1905 data. Data published in "US Naval Weapons."

Mount/Turret Data

Designation Twin Turrets
   Indiana (2): Mark 2 1d 2d
   Kearsarge (2): Mark 3 3d
   Illinois (2): Mark 4 4d
Weight Mark 2: 440 tons
Mark 3: 712 tons 5d
Mark 4: 503 tons
Elevation All: -5 / +15 degrees
Rate of Elevation N/A
Train about -150 / +150 degrees
Rate of Train N/A
Gun Recoil N/A
Loading Angle Mark 2: +10 degrees
Mark 3 and 4: +2 degrees
  • ^Defects in the design of the trunnions made it necessary to mount the guns so far back in the Mark 2 turrets that oversized gunports were necessary, negating much of the armor protection.
  • ^The Mark 2 used on the Indiana class could create a list as large as 5 degrees when trained directly abeam. As the maximum elevation for these guns was +15 degrees, this list significantly reduced the maximum range. Hoists were single stage, running directly from the shell rooms to the gun breeches.
  • ^The Mark 3 mounting used two 50 hp electric motors for training. Elevation, hoists and chain-driven rammers were also electrically powered. Run out in this mounting was a combination of spring and hydraulic cylinders.
  • ^The Mark 4 was a balanced design and so eliminated the listing problem. The trunnions on the Mark 4 mountings were located close to the face plate, allowing for much smaller gunports and thus better protection. In other respects, it was similar to the Mark 3 with electric power and direct hoists.

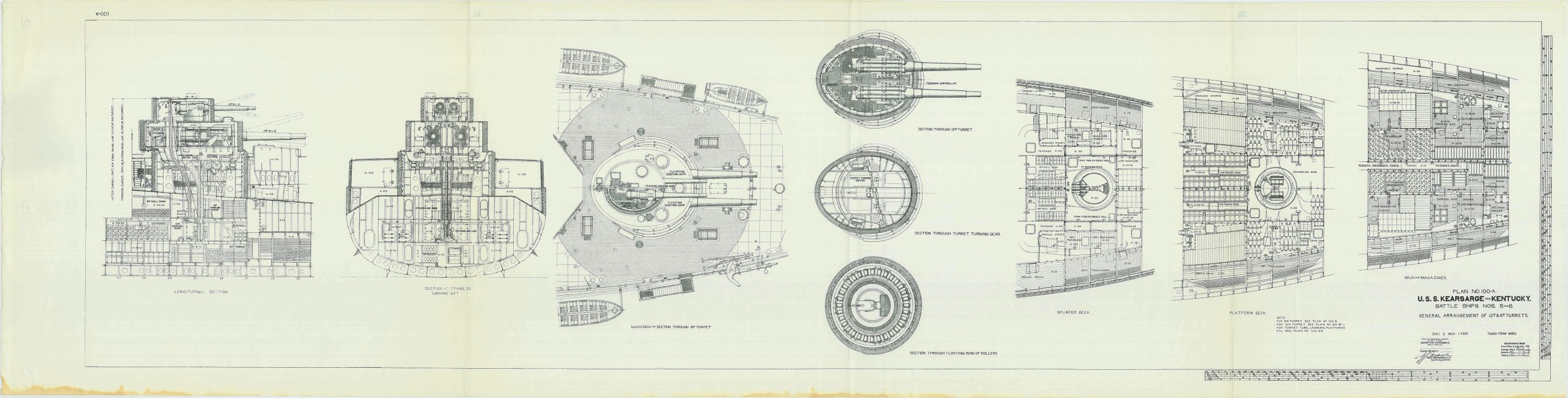

  • ^The Mark 3 had a superimposed twin 8"/35 (20.3 cm) mount on top of the twin 13" (33 cm) mount, accounting for its much heavier weight compared to the Mark 2.
  • On 13 April 1906, exposed switch gear in the rear of one of the 13" (33 cm) mountings on Kearsarge (B-5) caused a powder burn, killing two officers and eight men, with four additional men being seriously injured. As a corrective measure, all electrical equipment that might cause a spark hazard were removed from all USN mountings between 1907 and 1908. Bulkheads were installed between the guns and breech gas ejectors were fitted to prevent flarebacks.

Additional Pictures


"U.S. Battleships: An Illustrated Design History" and "US Naval Weapons" both by Norman Friedman
"The Big Gun: Battleship Main Armament 1860-1945" by Peter Hodges
"Battleships" by Paul Stillwell
"Naval Ordnance" article in "Proceedings July 1894" Vol. 20/3/71 by P.R. Alger, Professor of Mathematics, U.S. Navy
"Naval Ordnance - A Text Book" revised in 1915 by Lt. Cmdr. Roland I. Curtain and Lt. Cmdr. Thomas L. Johnson
"Ordnance and Gunnery, A Text-book Prepared for the Use of the Midshipmen of the United States Naval Academy" by Officers of the U.S. Navy (1910)
"US Naval Guns - Marks and Modifications - Experimental Guns" dated 1956
"Range and Ballistic Tables 1935" by Department of Ordnance and Gunnery, U.S. Naval Academy
Tony DiGiulian's personal files
Special help from James P.
