1-pdr. guns were in use by many nations at the end of the 1890s, including the United States of America. The list of 1-pdr. guns that served in the USN is something of a jumble, as several manufacturers built weapons of this type which were adopted by the USN and the USN built their own types. As the USN assigned its own Mark and Mod numbers to these weapons which rarely matched the Mark and Mod numbers assigned by the manufacturers and which were embossed on the weapons, there is always confusion as to which gun a Mark number is describing.

The earliest of these weapons was the Sponsell Gun, manufactured by Pratt and Whitney, which had a vertically sliding breech block. No Mark number was assigned to this gun. Mark 1 was the Hotchkiss light, short Mark 1 gun on a non-recoil mount. Mark 1 Mod 1 was the Hotchkiss light, long Mark 2 gun on a recoil mount. Both of these Mark 1 guns were produced in different lengths, making it difficult to assess performance.

Mark 2 was a Driggs-Schroeder heavy Mark 1. Mark 3 was the Hotchkiss heavy, long Mark 1 gun. Mark 4 was the Driggs-Schroeder heavy, long Mark 2. Mark 5 was the Hotchkiss heavy Mark 2.

Mark 6 was the heavy machine cannon which was used as an anti-aircraft gun during World War I. It was originally the Maxim-Nordenfeldt heavy, automatic Mark 1 and entered service just before the Spanish-American War. This gun used a water-jacket. Mark 7 was similar but had a shorter barrel.

Mark 8 was the Hotchkiss heavy, semi-automatic Mark 3. Mark 9 was the Maxim-Nordenfeldt light, automatic Mark 1. Mark 10 was a rapid-fire aircraft gun with a Hotchkiss-type breech. Mark 11 was a Hotchkiss-type line-throwing gun. Mark 12 was a monobloc gun with a Driggs sliding and rotating drop breech block. Mark 13 a Mark 5 with monobloc rather than built-up construction. Mark 14 was a Baldwin design manufactured by Poole during World War I and was an automatic gun with a flexible mount. The Mark 15 was similar but used a much larger cartridge for a higher muzzle velocity.

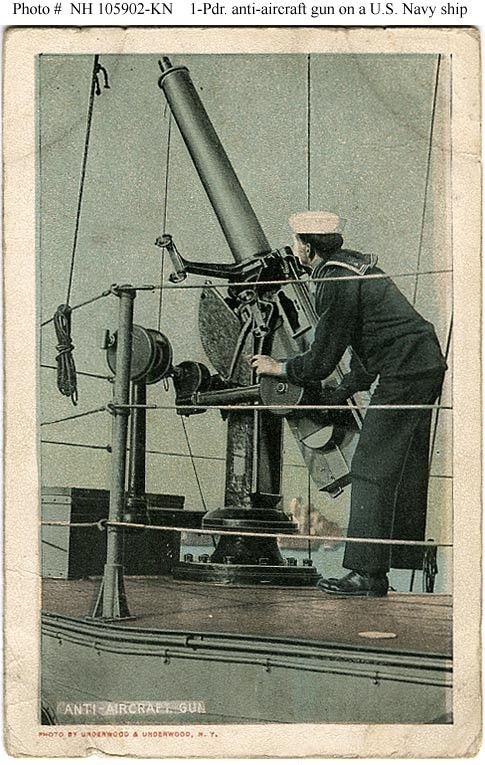

Many automatic guns were remounted as anti-aircraft weapons during World War I.

The data that follows is specifically for the Hotchkiss 40 gun unless otherwise noted.

Gun Characteristics

Designation 1-pdr. (0.45 kg) [1.46" (37 mm)]

   Sponsell Gun: 40 calibers
   Mark 1: Hotchkiss Light, Short, Mark 1: 20 and 27 calibers
   Mark 1 Mod 1: Hotchkiss Light, Long, Mark 2: 35 or 45 calibers
   Mark 2: Driggs-Schroeder Heavy, Mark 1: 50 calibers
   Mark 2 Mod 1: Driggs-Schroeder Heavy, Mark 1: 40 calibers
   Mark 3: Hotchkiss Heavy, Long, Mark 1: 40 calibers
   Mark 4: Driggs-Schroeder Heavy, Mark 2: 40 calibers
   Mark 5: Hotchkiss Heavy, Mark 2: 40 calibers [built-up barrel]
   Mark 6: Maxim-Nordenfeldt Heavy, automatic, Mark 1: 42.5 calibers
   Mark 7: Maxim-Nordenfeldt Heavy, automatic AA: 30 calibers
   Mark 8: Hotchkiss Heavy, semi-automatic, Mark 2: 40 calibers
   Mark 9: Maxim-Nordenfeldt Light, automatic: N/A
   Mark 10: Rapid-fire aircraft gun with a Hotchkiss-type breech
   Mark 11: Hotchkiss-type line throwing gun: 20 calibers
   Mark 12: Monobloc gun, Driggs sliding and rotating drop breech block: 40 calibers
   Mark 13: Mark 5 with a monobloc barrel: 40 calibers
   Mark 14: Baldwin: N/A
   Mark 15: Baldwin automatic motor gun: N/A

Ship Class Used On Many
Date Of Design about 1885
Date In Service 1886
Gun Weight N/A
Gun Length oa N/A
Bore Length N/A
Rifling Length N/A
Grooves N/A
Twist Mark 5: RH 1 in 30
Others: N/A
Length Of Rifling N/A
Chamber Volume N/A
Rate Of Fire Semi-automatic: 25 rounds per minute


Type Fixed
Weight of Complete Round about 1.62 lbs. (0.7 kg)
Projectile Types and Weights HE: 1.058 lbs. (0.48 kg)
Common Mark 2 Mods 0 and 1: 1.088 lbs. (0.49 kg)
Bursting Charge 1 HE: N/A
Common Mark 2: 0.026 lbs. (0.012 kg) Black Powder
Projectile Length HE: N/A
Common Mark 2: 3.56 in (9.0 cm)
Cartridge Case Type, Size and Empty Weight Mark 2: Brass, 37 x 137 mm, 0.406 lbs. (0.18 kg)
Propellant Charge 0.15 lbs. (0.070 kg) NC
Muzzle Velocity Light guns: 1,500 fps (457 mps)
Heavy guns: 2,000 fps (610 mps)
Mark 15, only: 3,000 fps (914 mps)
Working Pressure N/A
Approximate Barrel Life N/A
Ammunition stowage per gun N/A
  • ^Some Common rounds used a burster mixture of Black Powder and TNT.
  • Bourrelet diameter was 1.445 inches (3.67 cm).


Range with 1.058 lbs. (0.48 kg) HE and muzzle velocity of 2,000 fps (610 mps)
Elevation Distance Strking Velocity Angle of Fall Time of Flight
1.4 degrees 1,000 yards (910 m) 1,007 fps (307 mps) 2.0 2.2 seconds
4.0 degrees 2,000 yards (1,830 m) 740 fps (226 mps) 6.9 5.8 seconds
8.4 degrees 3,000 yards (2,740 m) 576 fps (176 mps) 16.0 10.5 seconds
11.4 degrees 3,500 yards (3,200 m) 519 fps (158 mps) 22.7 13.5 seconds

Mount/Turret Data

Designation N/A
Weight N/A
Elevation N/A
Elevation Rate Manually operated, only
Train 360 degrees
Train Rate Manually operated, only
Gun recoil N/A
