Howitzer used to arm River Monitors.
| Designation | 12 cm (4.7") Haub L/10 Škoda |
|---|---|
| Ship Class Used On | River Monitors: Bodrog, Enns and Sava classes |
| Date Of Design | about 1909 |
| Date In Service | 1910 |
| Gun Weight | 838 lbs. (380 kg) without breech |
| Gun Length oa | 49.0 in (1.246 m) |
| Bore Length | 35.0 in (90.0 cm) |
| Rifling Length | N/A |
| Grooves | N/A |
| Lands | N/A |
| Twist | N/A |
| Chamber Volume | N/A |
| Rate Of Fire | about 10 rounds per minute |
| Type | Separate |
|---|---|

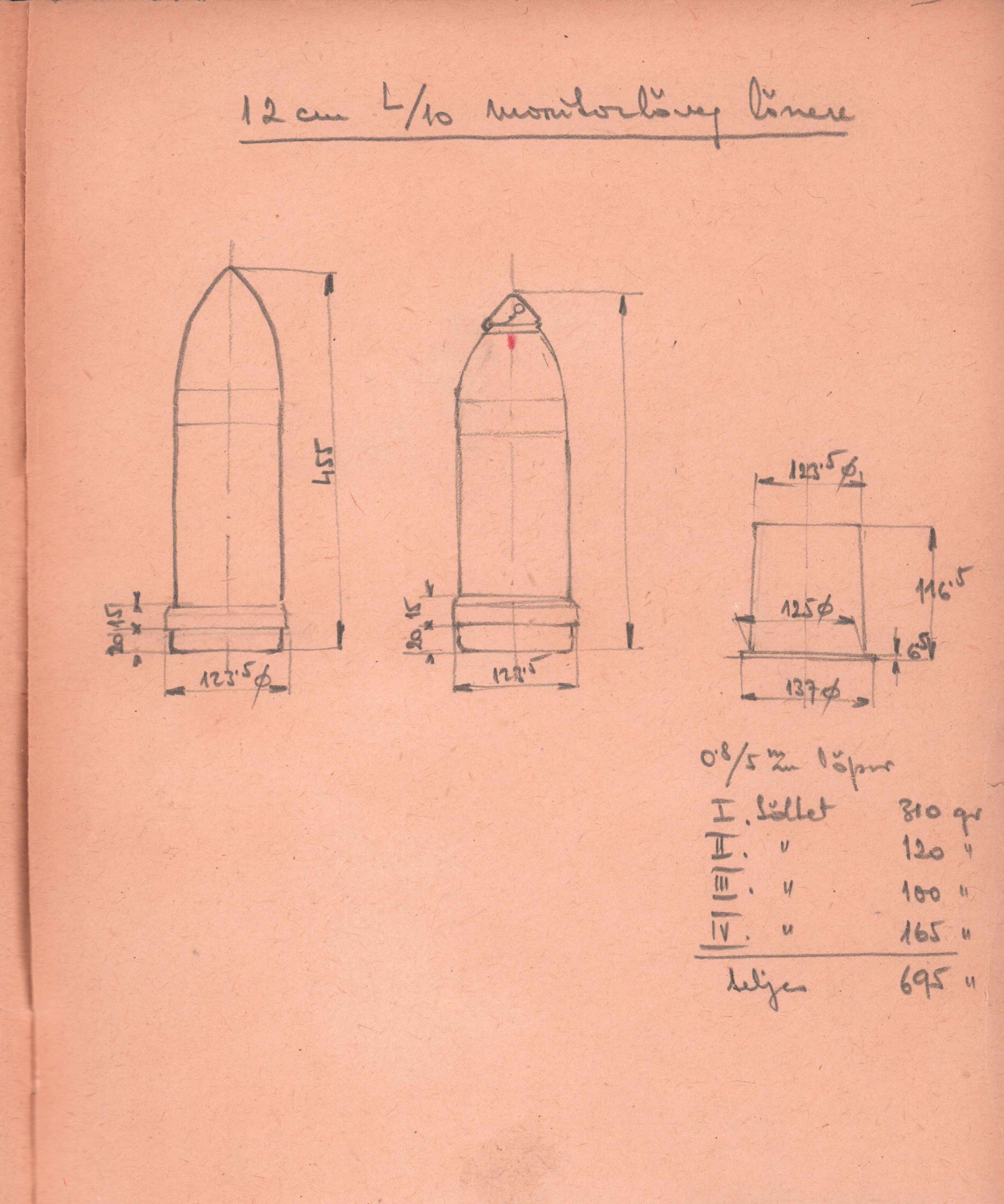

| Projectile Types and Weights | Common: 44.0 lbs. (20.0 kg)
Shrapnel: 44.0 lbs. (20.0 kg) |
| Bursting Charge | Common: 0.4 lbs. (0.18 kg)
Shrapnel: 0.53 lbs. (0.24 kg) |
| Projectile Length | N/A |
| Cartridge Case Type, Size and Empty Weight | Brass, 120 x 116.5 mm, N/A |
| Propellant Charge | 0.33 to 0.99 lbs. (0.15 to 0.45 kg) |
| Muzzle Velocity | 980 fps (300 mps) |
| Working Pressure | N/A |
| Approximate Barrel Life | N/A |
| Ammunition stowage per gun | N/A |
| Elevation | Distance |
|---|---|
| 45 degrees | 6,780 yards (6,200 m) |
| Designation | Single Mountings
Bodrog (1), Enns (3) and Sava (2) |
|---|---|
| Weight | N/A |
| Elevation | about -5 / +80 degrees |
| Elevation Rate | Manually operated, only |
| Train | about +150 / -150 degrees |
| Train Rate | Manually operated, only |
| Gun recoil | N/A |
"Naval Weapons of World War One" by Norman Friedman
Original research by Mihály Krámli and András Hatala
06 June 2025 - New datapage
