Vickers started production of this gun in 1926, but service introduction on British ships does not seem to have taken place prior to 1932. This weapon was used on almost all British warships during World War II, many in quad mounts like the ones shown below.

This was a recoil-operated, water-cooled gun with link-belt ammunition feed and was significantly less powerful than the USN's 0.50" (12.7 mm) Browning M2 BMG. Like the US and most other nations, the British found small-caliber machine guns like these to be ineffective against modern aircraft. Nonetheless, this weapon was still produced in large numbers during the war with an overall total of 12,500 being built.

A few guns were exported to Japan during the late 1930s where they were designated as the 12 mm/62 "BI" Type (also known as the "HI" Type). The Japanese guns were mostly replaced by the start of the Pacific War by the superior 13 mm Type 93 and 25 mm Type 96 Hotchkiss guns.

China purchased 19 British guns pre-war.

Actual bore length was 62.5 calibers.

Unless otherwise noted, the data below is for British weapons.

Gun Characteristics

Designation 1 0.5"/62 (12.7 mm) Mark III

   No. 1: For quad mounts
   No. 2: For twin mounts
   No. 3: For single mounts

Ship Class Used On Britain: Almost all warships in World War II
Japan: N/A
Date Of Design 1926
Date In Service 1926
Gun Weight 56 lbs. [62 lbs. with filled cooling jacket] (25.4 kg [28.1 kg])
Gun Length oa about 35 in (89 cm)
Bore Length 31.25 in (79.4 cm)
Rifling Length N/A
Grooves N/A
Lands N/A
Twist N/A
Chamber Volume N/A
Rate Of Fire 2 600 to 700 rounds per minute cyclic
450 rounds per minute cyclic when used with a delay pawl
150 to 200 rounds per minute practical
  • ^The guns for single and twin mounts were similar to those for the quad mounts but had shoulder rests.
  • ^Each ammunition drum held 200 rounds, which was enough for about twenty seconds of firing. The four ammunition drums on the quad mounting could be replaced within thirty seconds by a well-trained crew.


Type Fixed
Weight of Complete Round 2.9 oz (0.08 kg)
Projectile Types and Weights 1a Ball: 580 gr., 1.326 oz (37.6 gm)
Bursting Charge Solid bullet
Projectile Length N/A
Propellant Charge Ball: 142gr., 0.324 oz. (9.2 gm) Cordite 7/2
Muzzle Velocity 2,520 fps (768 mps)
Working Pressure N/A
Approximate Barrel Life N/A
Magazine capacity per gun About 2,500 rounds
  • ^Bullets were also produced in AP, SAP, SAP-T and Incendiary.

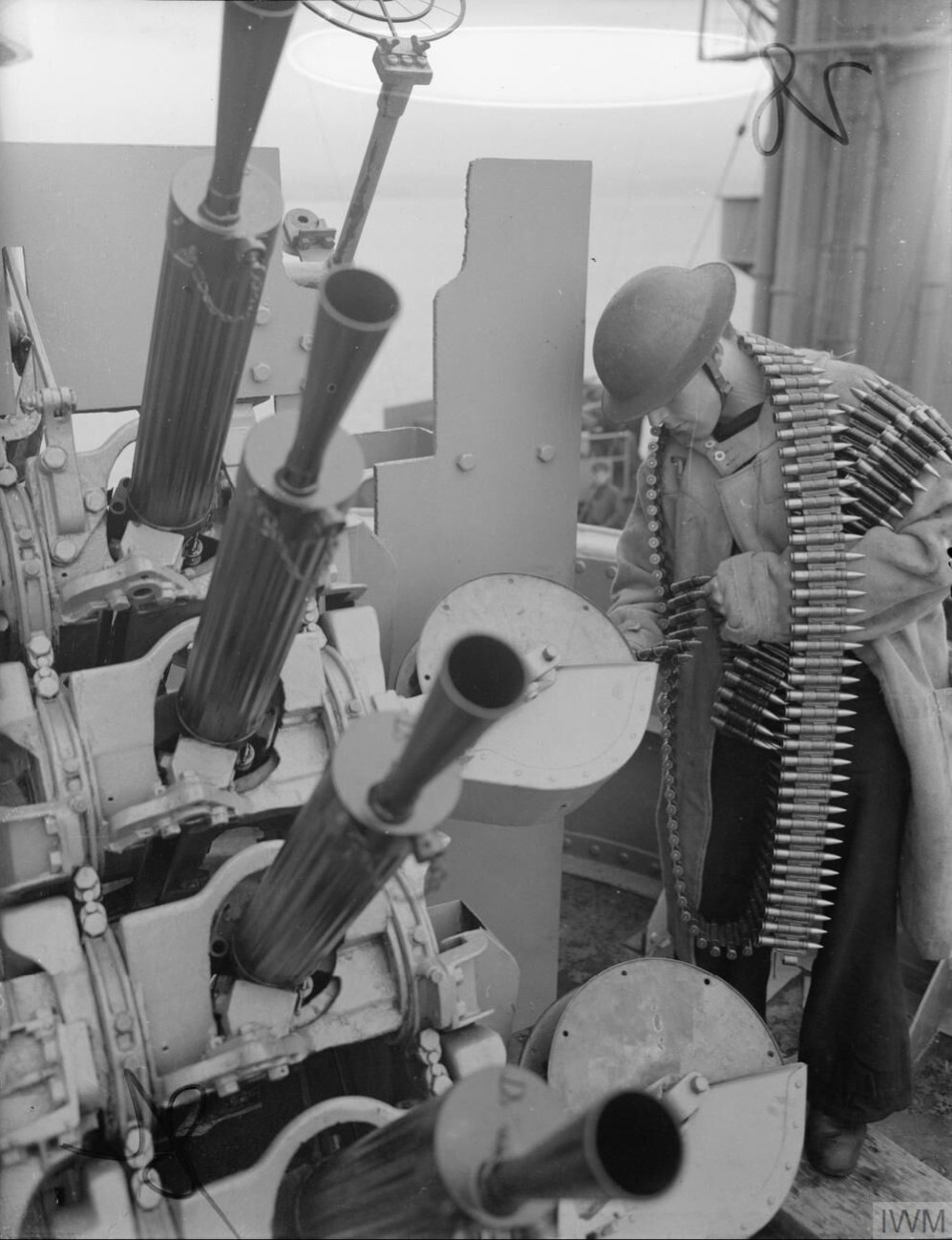

  • Ammunition was in a 200-round belt carried in a drum. Each loaded drum weighed 60 lbs. (27.2 kg).


Range with 1.326 oz (0.37 kg) Bullet
Elevation Distance
Effective Range 800 yards (730 m)
Maximum Range about 5,000 yards (4,570 m)

Pre-war calculations determined that a ten second burst with a quad mount, equivalent to about 400-450 rounds, could expect 40 rounds to hit a target. However, this analysis assumed that the target area was entirely within the pattern of spread for the duration of the burst, an assumption that meant that both the layer and the trainer needed to perfectly judge the approach speed of the attacking aircraft and then constantly adjusting - by hand - their aiming during those ten seconds, regardless of how their ship rolled, pitched and yawed during that time.

Mount/Turret Data

Designation Single Mountings
   Mark VI
   Also some Scarf Ring types

Twin Mountings
   Mark IV 1b
   Mark V 2b
   Mark VC 3b

Quad Mountings 4b 5b: 6b
   Mark I and Mark I** 7b
   Mark II and Mark II** 7b
   Mark III 7b

Weight Mark I: 1,605 lbs. (728 kg)
Mark I*: 2,200 lbs. (998 kg)
Mark II: 2,888 lbs. (1,310 kg)
Mark III: 2,580 lbs. (1,170 kg)
Mark IV: 1,692 lbs. (772 kg)
Mark V: 1,041 lbs. (472 kg)
Mark VC: N/A
Elevation Mark I and Mark I**: -10 / +70
Mark II, Mark II** and Mark III: -10 / +80 degrees
Mark IV: -10 / +70
Mark V and Mark VC: -10 / +70
Elevation Rate All except Marks V and VC: Manually operated, only
Marks V and VC: 50 degrees per second
Train 360 degrees
Train Rate All except Marks V and VC: Manually operated, only
Marks V and VC: 72 degree/s per second
Gun recoil 1.25 in (3.2 cm)
  • ^The twin Mark IV mounting was used mainly on MLs, MMS, some Bangor class minesweepers, and trawlers.
  • ^The Mark V twin turret was a light weight unit intended for MTBs but was also used on a few LCS(M), destroyers and corvettes. It was hydraulically powered and the belt feed ran through hollow inner trunnions. The hydraulic pump was located off the mounting and this was powered from the engine of the MTB.
  • ^The Mark VC was an American-produced mounting and could also be used for the US 0.50 in (1.27 cm) Browning M2 MG.
  • ^Large ships usually had four quad mountings, but HMS Ark Royal had eight. Cruisers had two to four and destroyers had two.
  • ^The quad mounting had its barrels slightly misaligned from each other in order to give a "scatter" effect.
  • ^Early quad mountings had a single gunner that controlled train by a 'U' bracket around his hips as can be seen in the photograph above and controlled elevation by a geared handwheel. Later quad mountings, as per the photograph of a destroyer mounting below, had both a trainer and a layer crewmen who used geared handwheels to control elevation and training.
  • ^ Mark III mounting had a new type of base plate that was more robust and of larger diameter than the previous types. As opportunity offered, the older Mark I and Mark II mountings were modified to bring them into line with the Mark III. These modified mounts were then designated as Mark I* and Mark II* to distinguish them from unmodified mounts.
